Double colors, TC Series

Home > Products > PE Plastic Blown Film Machine > Double colors, TC Series


Product Description

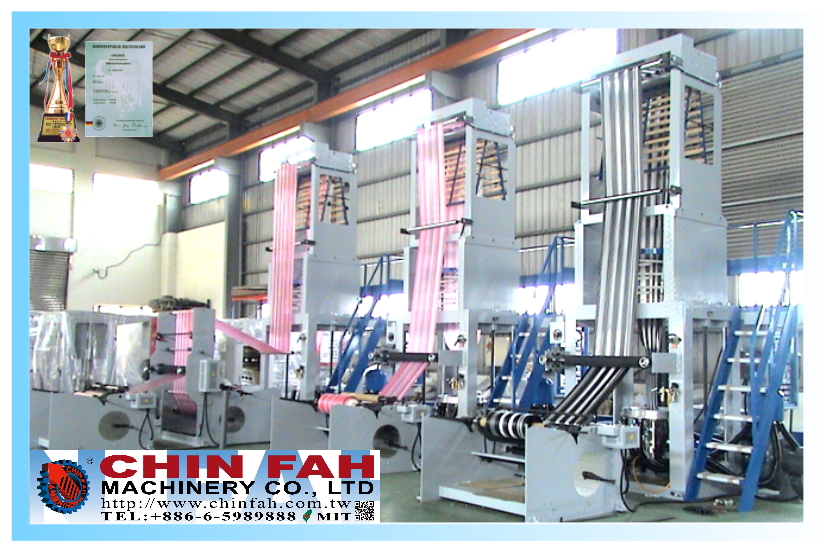

CHIN FAH's high quailty film extrusion, double color film, stripe type, the TC series.



  1. Double color die head, two extruder, suitable for HDPE material.
  2. Strip number base on customers' demand.
  3. Clear two color strips and high quality film.
  4. User-friendly, save labor cost, time and maintenance cost, standardized components, replace quickly.
Product Specifications

Extruder: Low base type, with grinded gear box, excellent design of die head with adequate pressure, smooth flowing high capacity, and special air ring for proper cooling and stabilizing.

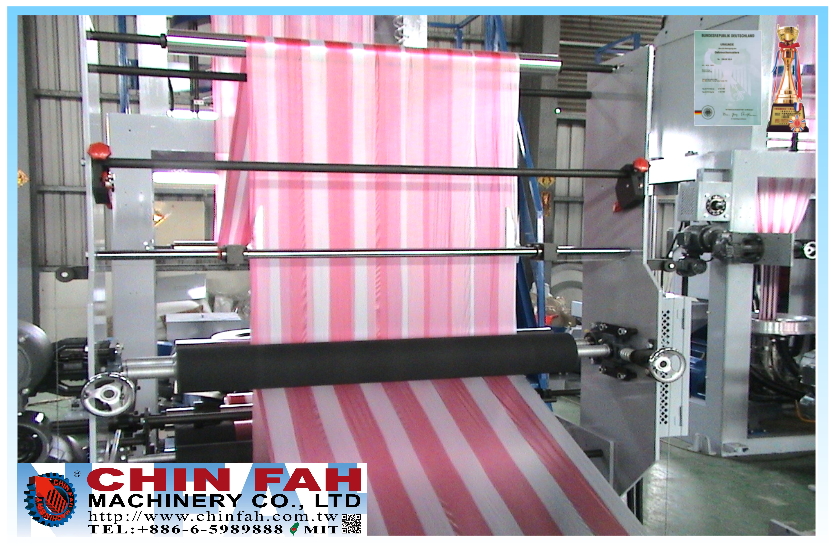

Take up unit: With adjustable height take up tower and pheumatic pinch roller device.

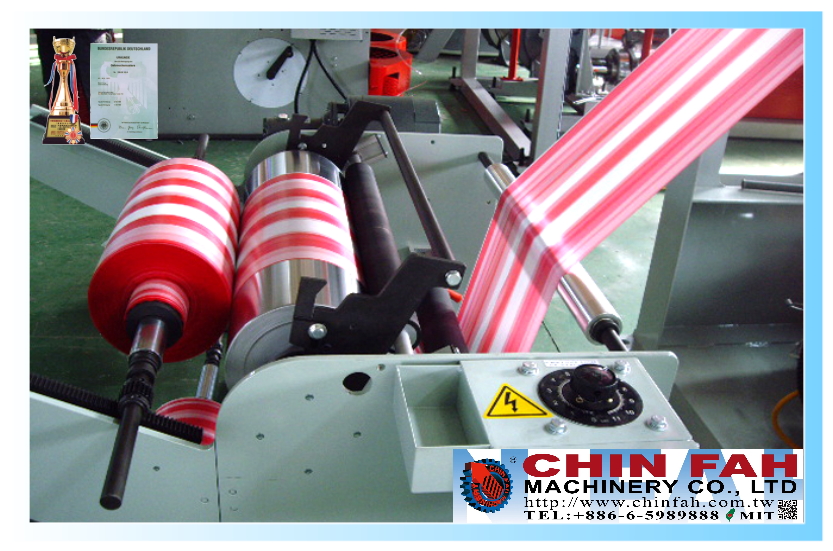

Surface Winder:Special design of winder winding diameter is increase equip with adjustable gear rail cause more compact winding more even no offset and easy to operate.

Optional Euipment
1. Auto loader
2. Film width controller
3. Meter counter
4. Surface static treater(corona)
5. Embossing roller
6. Air shaft
7. Back to back(double) winder
8. Rotary device

Model YF-TC-40 YF-TC-45
Production Double Color Inflation Tubular Film
Film Thickness HDPE: 0.02-0.20MM
MAX. Film Width 550MM 900MM
Max. Extrusion Output 45-60 KG/HR 60-80 KG/HR
Type of Extrusion Low Base Type
Screw Diameter 40mm 45mm
Roller Width 650mm 1000mm

All Specification and pictures above are for reference only.

If you need more information, please feel free to contact us.
