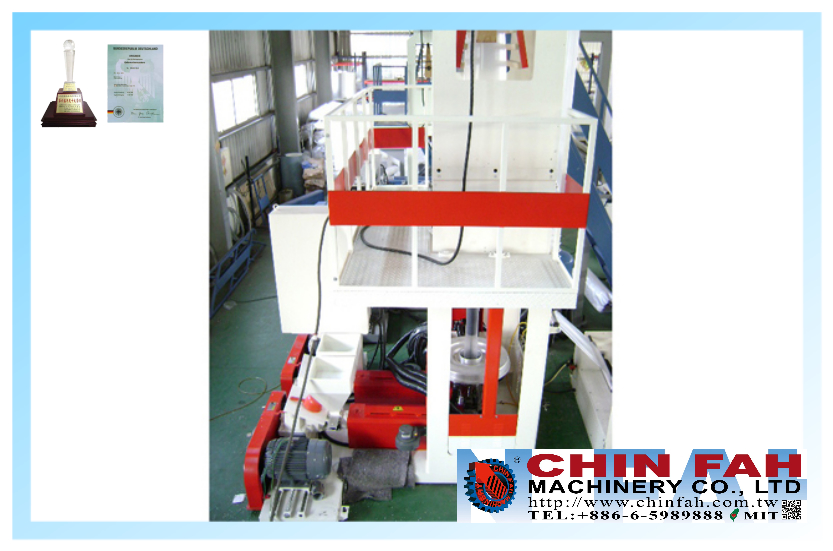

Multiple-layer Co Extrusion, CE Series

Home > Products > PE Plastic Blown Film Machine > Multiple-layer Co Extrusion, CE Series


Product Description
  1. CE-Series: two-layer different color blown film machine.
  2. Clear and quality multiple-layer film.
  3. Strong and stable machine steel structure, films will not vibrate easily so product quality is high.
  4. Suitable for agriculture use, green house, cover crops.
Product Specifications

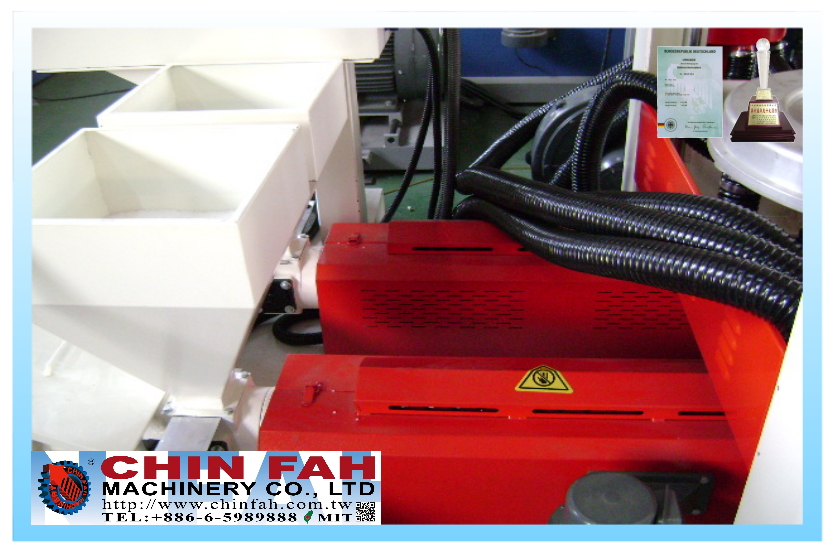

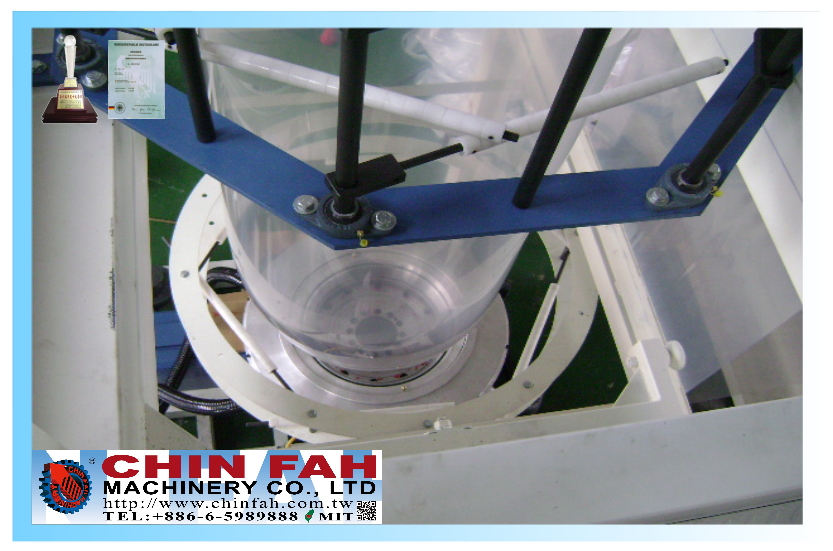

  • Extruder: Low base type, with grinded gear box, excellent design of die head with adequate pressure, smooth flowing high capacity, and special air ring for proper cooling and stabilizing.
  • Take up unit: With adjustable height take up tower and pheumatic pinch roller device.
  • Surface Winder: Special design of winder winding diameter is increase equip with adjustable gear rail cause more compact winding more even no offset and easy to operate.

Optional Euipment:
1. Auto loader
2. Film width controller
3. Meter counter
4. Surface static treater(corona)
5. Embossing roller
6. Air shaft
7. Back to back(double) winder
8. Rotary device



Model YF-CE-40 YF-CE-55 YF-CE-65 YF-CE-85
Production HDPE/ LDPE Double LAYERS Inflation Tubular Film
Film Thickness HDPE: 0.02-0.20MM
Film Width 750MM 1100MM 1600MM 2000MM
Extrusion Output 45-55 KG/HR 100 KG/HR 120-140 KG/HR 140-160 KG/HR
Screw Diameter 40mm 55mm 65mm 85mm
Roller Width 850mm 1200mm 1800mm 2200mm

All Specification and pictures above are for reference only.

If you need more information, please feel free to contact us.
